Double Curved Insulated Glass Will Clad the ‘2 Murray Road’ Office Tower in Hong Kong | ZHA Reveals Design

2 Murray Road’ Office Tower by ZHA in Hong Kong Revealed

Zaha Hadid Architects has revealed the design for 36-storey ‘2 Murray Road’ project for Henderson Land, Hong Kong, China. Situated in the heart of Hong Kong’s central business district, the project replaces a multi-storey car park to create an urban oasis adjacent to Chater Garden within a short walking distance to both Central and Admiralty MTR metro stations. SURFACES REPORTER (SR) puts forward an in-depth information of the ZHA proposed project design. You can also take a virtual tour to the building through the video provided at the bottom of this post.

With its base elevated above the ground to shelter courtyards and gardens cultivated with trees and plants in the centre of one of the world’s busiest cities, the design creates new civic plazas that are enveloped by nature.
zaha hadid-2 murray roadImage by Arqui9

The design reinterprets the structural forms and layering of a Bauhinia bud about to blossom. Known as the Hong Kong orchid tree, the Bauhinia x blakeana was first propagated in the city’s botanic gardens above the Murray Road site and its flowering bud features on Hong Kong’s flag.

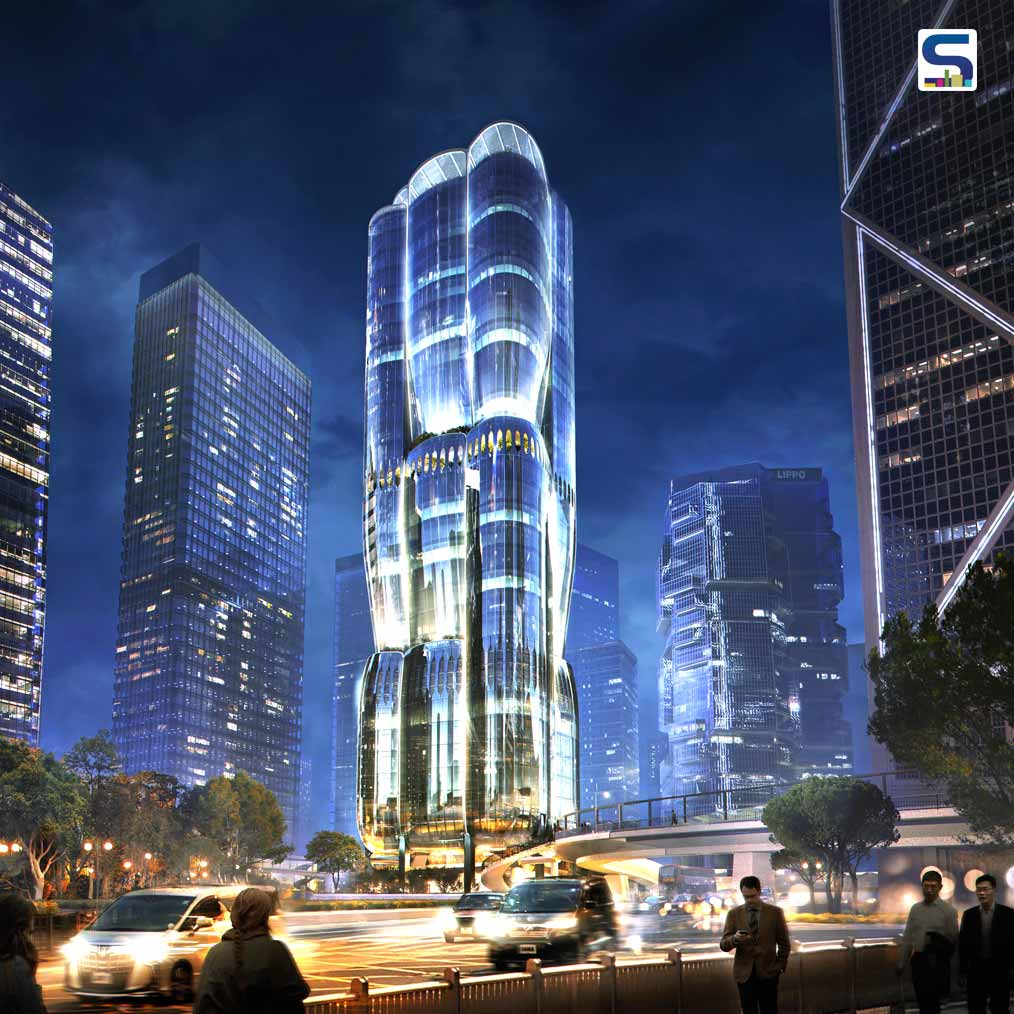

Unique Curved Glass Façade



Image by MIR

Echoing the organic forms of the natural world; the redevelopment connects with the adjacent public gardens and parks. These tranquil outdoor areas flow into the generous communal spaces of the interior; the craftsmanship and precision of the curved glass façade enhancing this seamless connectivity between the building’s interiors and the surrounding gardens and city beyond.

Designed to withstand the region’s powerful summer typhoons, the façade is comprised of 4-ply, double-laminated, double-curved insulated glass units – the first of their kind in Hong Kong – to effectively insulate the 2 Murray Road building and reduce its cooling load as well as build resilience.

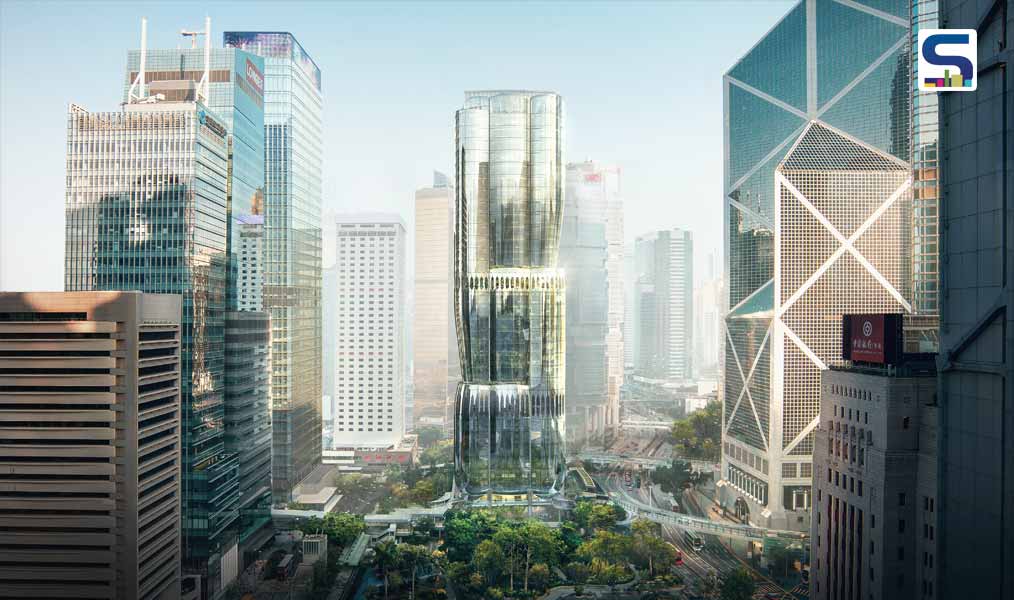

Panoramic Views of the Surroundings



zaha hadid-2 murray road

At the core of the city’s financial district, the project is situated at the east-west / north-south junction of Hong Kong’s network of elevated pedestrian walkways; connecting directly with surrounding gardens, shops and restaurants as well as the offices of leading financial and civic institutions.

The banqueting hall at the top of the 2 Murray Road tower offers panoramic views of the city’s surrounding skyline. Hosting a variety of public and corporate events, its glazed roof and façade will ensure this space becomes one of the city’s most memorable venues.

Sturdy Structure



zaha hadid-2 murray roadImage by Arqui9

A high-tensile steel structure provides very wide span (up to 26m) of naturally lit, column-free, Grade A office space with a 5 metre floor-to-floor height giving maximum flexibility; its vertical core located on the eastern side of the 2 Murray Road building to optimise views of Chater Garden and the city’s renowned skyline to the west.

Working with the Henderson Land and Arup’s Building Sustainability Team, the design has achieved LEED Platinum and WELL Platinum pre-certification together with the highest 3-Star rating of China’s Green Building Rating Program. The design, procurement and construction targets full certification at occupancy.

AI-Assisted Lift Controls



zaha hadid-2 murray roadImage by Pixelflakes

The smart management system of the 2 Murray Road building creates a contactless pathway for all occupants from the street to their workstation that eliminates direct contact with communal surfaces and includes AI-assisted lift controls. Using a mobile phone, contactless smart card or biometric recognition, occupants can enter the building and pass security, call lifts to their office floor and access other zones such as lounge areas and washrooms.

Arranged for access on multiple levels, the large double-height foyer at ground level welcomes staff and visitors with its interplay of natural light, planting and organic forms leading up to the second floor public lobby on the city’s elevated walkway network. Suspended above the canopy of its surrounding tress, the sculptural glass façade of this expansive lobby defines a variety of nested spaces, each refined for purpose and experience.

Located on the refuge floor, the Sky Garden is an outdoor recreational space with running track and an aquaponics planting network that acts as an effective biological air-purifying filter by consuming contaminants.

Designed for intuitive navigation and to accommodate evolving patterns of working with enhanced workplace flexibility, the colour palettes of these finely detailed spaces differentiate key destinations within the 2 Murray Road tower.

Natural Ventilation



zaha hadid-2 murray roadImage by Cosmoscube


Hybrid ventilation is controlled by the building’s automated management system and enables all office levels to be naturally ventilated. This natural ventilation can be supplemented when required with mechanical dehumidification and filtration to further enhance the indoor environment and air quality.

The 2 Murray Road building’s air quality monitoring system will detect the degree of occupancy in any interior and automatically adjust indoor air temperature, humidity and fresh air volume to meet demand. These smart systems learn to accurately predict daily occupancy trends to optimise energy demand, ensuring increased efficiencies with lower energy consumption.

Two weather stations installed at street level and roof level will monitor real-time outdoor conditions including PM10, PM2.5, ozone, daylight (solar irradiation), wind speed (m/s), rainfall (mm), temperature (oC), humidity (%) and noise (dB). These weather stations will inform occupants of outdoor air quality and are connected to the building’s automated management system to adjust the tower’s hybrid ventilation as required, ensuring the optimum supply of high-quality outdoor air.

The redevelopment also incorporates a solar responsive ventilator (SRV) along the western perimeter of each floor to enhance the comfort of occupants. Powered by photovoltaics, the low speed, silent SRV creates a channel of air that can adjust solar radiative heat to the perimeter zone for further comfort.

Smart Chiller Plant to Avoid Energy Wastage



zaha hadid-2 murray roadImage by Cosmoscube

A 26% reduction in electricity demand will be achieved with the use of smart chiller plant optimization, high-efficiency HVAC equipment and daylight sensors that reduce artificial lighting during periods of sufficient natural light.

A top-down construction method is employed to accelerate the redevelopment programme on-site by implementing deep basement and above-ground construction at the same time.

With construction works beginning last year and its procurement targeting embodied carbon reductions as well as the use of recycled materials, 2 Murray Road looks to the future with the integration of advanced design, construction and operational technologies.

A Virtual Tour to Zaha Hadid Architects '2 Murray Road' Project Design at SURFACES REPORTER (SR)



Video by Cosmoscube

Project Data

Height: 190m (36 levels including ground, 5 below ground)
Floor area: 43,200 sq.m
Site coverage: 65% developed

Project Team
Client: Henderson Land
Architect: Zaha Hadid Architects (ZHA)
Design: Patrik Schumacher
ZHA Project Directors: Jim Heverin; Sara Klomps, Chris Lepine
ZHA Project Team: Brandon Gehrke, Bidisha Sinha, Carlos Michel-Medina, Edgar Payan, Eddie Can, Fernando Alvarenga, Hazel Wu, Inês Fontoura, Irena Predalic, Janet Cheung, Kaloyan Erevinov, Kar-Hwa Ho, Karoly Markos, Kelvin Ma, Kylie Chan, Magda Smolinska, Melodie Leung, Michael Sims, Muriel Boselli, Nailu Chen, Oliver Bray, Paulo Flores, Simon Yu, Tim Yeung, Torsten Broeder, Yun Zhang
ZHA Competition Team: Edgar Payan, Adrian Yiu, Brandon Gehrke, Carlota Boyer, Eddie Can, Fernando Alvarenga, Irena Predalic, Karoly Markos, Lorena Espaillat Bencosme, Maria Tsironi, Michail Desyllas, Nailu Chen, Paulo Flores, Philip Siedler, Saman Dadgostar, Torsten Broeder, Uli Blum

Local Architect & AP: Ronald Lu & Partners (Hong Kong)
Building Services Engineering: WSP (Asia)
Structural & Geotechnical Engineering: LERA Consulting Structural Engineers (Steel); C M Wong & Associates; Eckersley O’Callaghan Asia (Footbridges & Banquet Hall)
Facade Engineering: Group 5F; Meinhardt Facade Technology (Hong Kong)
Lighting consultant: LichtVision; Speirs + Major (Landscape & Media Façade)
Landscaping: PWP Landscape Architecture; Earthasia
Quantity Surveyor: Rider Levett Bucknall
Sustainability & Civil Engineering: Arup
Traffic consultant: MVA (Hong Kong)
Acoustic consultant: Shen Milsom & Wilke
Vibration consultant: C.F. Ng and Associates
AV / IV / Specialist Media consultant: Ptarmigan Integration Limited
Security consultant: UCS Hong Kong
Signage & Wayfinding consultant: Atelier Pacific

*Text and Image Courtesy: Zaha Hadid Architects
